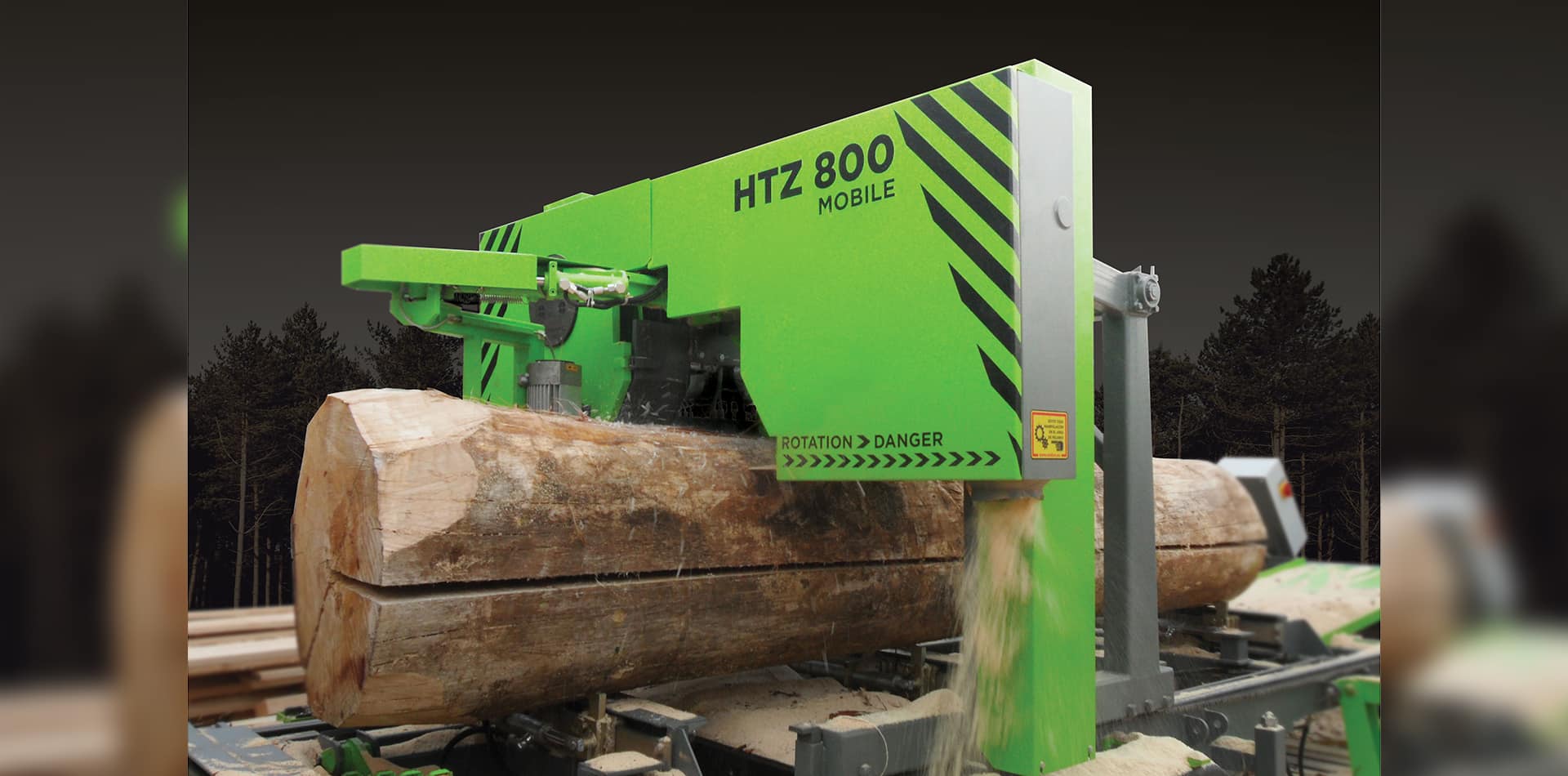

HTZ 800 / HTZ 800 MOBILE – horizontalna tračna žaga
Lastnosti večjih Mebor žag združene v manjšem “paketu”!
| TEHNIČNI PODATKI | HTZ 800 / MOBILE |
|---|---|
| Kapaciteta: | do 24 m3/8h* |
| Max. premer hloda: | 900 mm |
| Max. širina rezanja: | 800 mm |
| Max. dolžina hloda: | po naročilu |
| Premer koles: | 800 mm |
| Širina koles: | 80 mm |
| Dolžina lista žage: | 5300 mm |
| Širina lista žage: | 100 - 120 mm |
| Debelina lista: | 1 mm |
| Približna teža: | 3500 kg*** |
| Širina: | 2330 mm |
| Skupna višina (list žage na najvišji poziciji): | 2330 mm |
| Skupna dolžina (po naročilu): | dolžina hloda + 3,5m |
| Moč glavnega motorja: | 11/15/18,5/22 kW |
HTZ 800 je močan hkrati pa manjši stroj s širokim listom. Žaga je na voljo v mobilni ali stacionarni izvedbi! Glavne lastnosti:
- širok žagin list – nižji stroški vzdrževanja listov in velika natančnost rezanja
- avtomatsko odstranjevanje desk, kar omogoča, da s strojem dela le ena oseba
- močna ampak kompaktna za enostaven transport
- na voljo v povsem hidravlični izvedbi ali preprosti mehanski izvedbi
Oprema
Band Saw Head Equipment
Težka lito železna kolesa,
za visoko natančnost in učinkovito žaganje; možnost: nastavljiva hitrost lista
Ročno hidravlično napenjanje lista,
ohranja nastavljen tlak
Ročno vodeno predrezilo;
Podaljša življensko dobo rezila; sam sledi obliki hloda
Vstop žaginega lista v hlod pod kotom
- žagin list hitreje vstopi v hlod.
Visokohitrostni pomik glave tračne žage na verigo;
velika hitrost povratka
Zaboj za žagovino z ventilacijo
Mazajanje lista/hladilni sistemi
Laser, prikazuje višino reza
Band Saw Bed – Log Manoeuvring Equipment
Hidravlična vpenjala
z opcijsko nastavljivo višino
Enostavna obračalna naprava
hlodovine z neposrednim pogonom (samo na HTZ 800)
Levo-desni pomik obračalnih naprav
Hidravlični kotniki
Naprava za nalaganje hlodovine
Board Removal Equipment
Podest z valjem
za odstranjevanje desk
Tračni transporter
za avtomatsko odstranjevanje desk
Standardno potiskalo desk
(opcijsko dvižno potiskalo)
Avtomaska naprava za vodenje desk
– ohranja ravno smer desk med odstranjevanjem
Control
MEBOR SYSTEM Enojni avtomatski nadzor M91
MEBOR SYSTEM Automatic control V130
Popolno avtomatsko žaganje, možnost prostoročnega nadzora hitra izbira mer Izbira mer vnaprej
Optična varnostna ograja, za prostoročno delovanje – CE certifikat
Primerjalna tabela tračnih žag
| Max.Log diameter (mm) | Productivity (m3/8h) * | Blade width (mm) ** | Main motor power (kW) | Approximate weight (kg) *** | Product |
|---|---|---|---|---|---|
| 900 | up to 25 | 100 | 11/15/18,5/22 | 3500 | HTZ 800 |
| 900 | up to 25 | 100 | 11/15/18,5/22 | 3500 | HTZ 800 Mobile |
| 900 | up to 28 | 120 | 11/15/18,5/22/30 | 4500 | HTZ 1000 |
| 900 | up to 28 | 120 | 11/15/18,5/22/30 | 4500 | HTZ 1000 Mobile |
| 1000 | up to 38 | 120 | 18,5/22/30/37 | 7000 | HTZ 1100 PRO |
| 1000 | up to 38 | 120 | 18,5/22/30/37 | 7000 | HTZ 1100 Mobile |
| 1200 | up to 35 | 140 | 30/37/45/55 | 5500 - 7000 | HTZ 1200 Professional |
| 1200 | up to 35 | 140 | 30/37/45/55 | 7000 | HTZ 1200 SP |
| 1200 | up to 60 | 160 | 37/45/55 | 12500 - 15000 | HTZ 1200 PLUS |
| 1250 | up to 48/80 | 180 | 55/75 | 15000 - 18000 | HTZ 1300 PLUS |
| 1600 | up to 50 | 160 | 37/45/55 | 18000 - 21000 | HTZ 1200 SP EXTREME 15 |
| 1800 | up to 50 | 160 | 37/45/55/75 | 20000 - 24000 | HTZ 1200 SP EXTREME 18 |
| 2000 | up to 65/90 | 206 | 90/110 | 27000 - 34000 | HTZ 1400 SP EXTREME 20 |
* depends on log sizes, sawn wood dimensions, machine’s configuration etc
** blades for two sided cutting are 20 mm wider
*** depends on machine’s configuration
O Mebor tračnih žagah
Mebor System® is our own system of horizontal band saws, which sets us apart from our competitors. With a Mebor band saw you will increase your productivity and yield, as well as decrease labour costs.
Wood is unpredictable and for this reason Mebor band saws have a strong and robust construction. It guarantees reliability of functioning and minimises maintenance costs.
Band saws adapted for your needs – for small and big sawmills. Every Mebor band saw is custom made; therefore we supply each customer an optimal band saw for his needs. We will advise which model is most suitable for your needs and requirements. We will also adjust the configuration of the band saw; for example the distances between clamps according to the lengths of logs, equipment etc.
Automatic board removing (Mebor System® )
We were the first to introduce the board removing system, which saves your time. After the band saw cuts a board, the board pusher pushes it off the band saw bed during the return of the band saw head. Simple and automatic, with no manual work.
Automatic functioning – Mebor System® Labour costs present a big share of costs in sawmills. Regardless of whether it is a small model, or a bigger and faster Mebor band saw model, all of them include automatic guidance. If necessary, this allows the operator to also stack boards on his own, simultaneously during sawing! As it is a one man operation, the labour costs are minimised. The operator should focus on the productivity, quality of wood and output, not on the machine operation. This is done instead of you by the Mebor band saw and you can increase the profit of your company. The control is simple and user friendly. Our customers learn how to operate the machine in a few hours.
Mebor System® leads the operator during cutting. It provides important information, which helps him choose the optimal cutting for best output. Manual control is also available for less demanding users.
Full log manoeuvring equipment is available for fast and effortless work.
Quick and low cost installation Mebor band saws are installed in one day and do not require any special foundations. Precision of cutting is ensured by the solid construction and wide blades. All Mebor band saws are using wide blades (80-210 mm wide). The fact is that wide blades provide higher sawing speed, as well as better sawing precision. The high quality of your products will increase the satisfaction of your customers.
