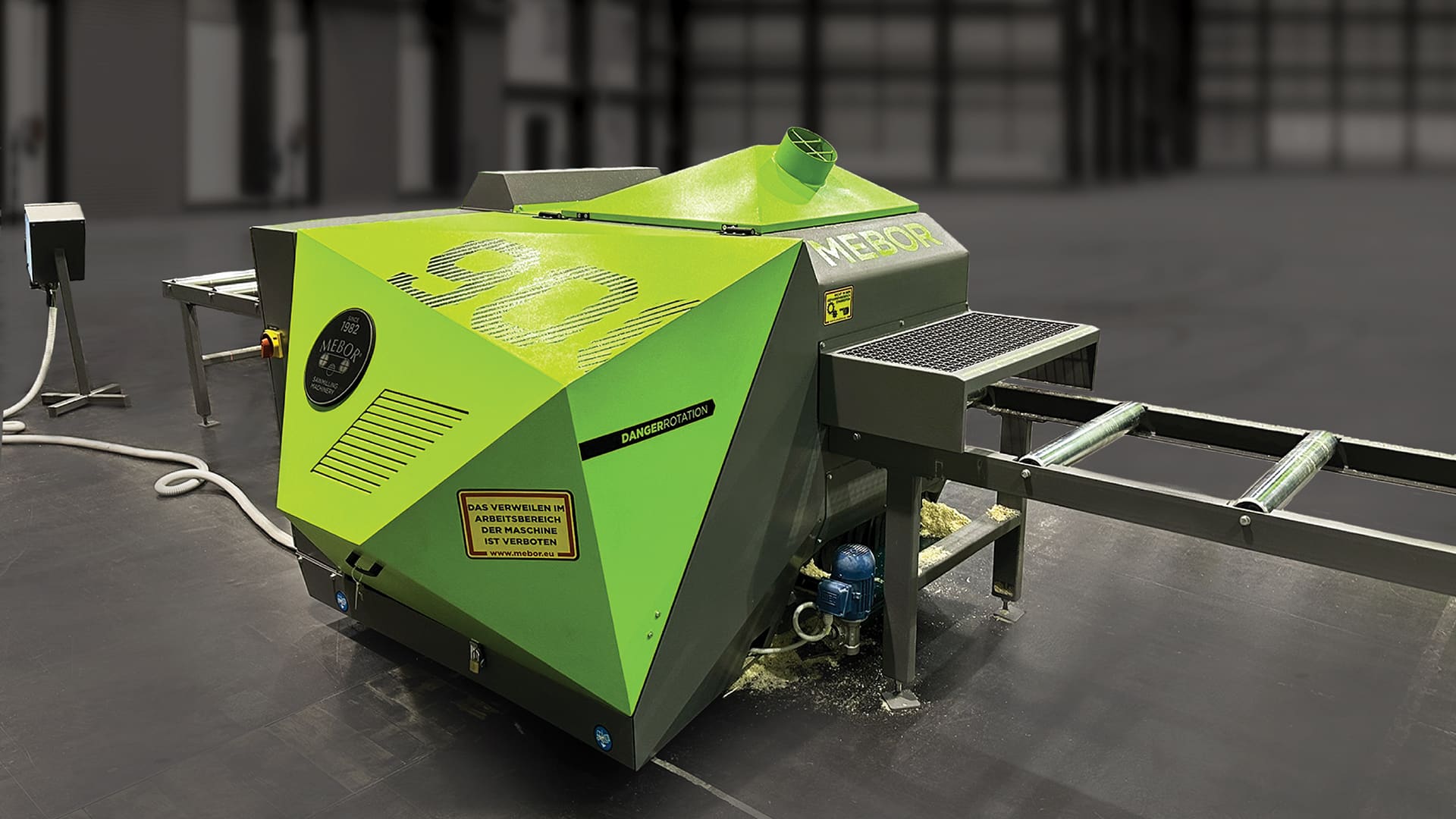

VR 900 – board edger & multi rip saw
Strong, all in one board edger & multi rip saw!
Mebor board edgers are recognised by their strong and robust construction, giving reliability, high performance and low maintenance costs. VR machines can use up to 3 (5) moveable heads (blades) and are designed for both edging of boards and multi-ripping of cants. Mebor’s precision made frame ensures high precision of cutting and high quality of your products. Simple to highly automated versions are available.
|TECHNICAL DATA||VR 900|
|Max. infeed/sawing width:||900/800 mm |
|Max. sawing thickness:||160 mm|
|Motor power options:||30/37/55/75 kW |
|Diameter of circular saws:||300–500 mm |
|Approx. weight:||3500–3900 kg |
|Number of mobile heads (blades):||1/2/3|
|Fixed multi-ripping head:||yes|
|Number of feeding rollers:||3 bottom, 2 top |
|Control – blade positioning:||automatic / auto. + |
|Blade positioning system:||hydraulic / fast servo hydraulic|
|Infeed:||simple / motorised |
VR Equipment & Options
- Upgrade to motorised infeed.
- Re-feed guide for straight-edge boards.
- Positioning chains.
- Operator-free, OPTIMISED infeed with scanning & automatic positioning.
- Auto. blade positioning (1/2/3 mobile heads).
- Faster automatic blade positioning (1-5 mobile heads).
Edgers compare table
|TECHNICAL DATA||DR 600||VR 800||VR 900||VR 1300|
|Max. infeed/sawing width:||800/600 mm||900/800 mm||900/800 mm||1350/1250 mm |
|Max. sawing thickness:||100 mm||110 mm||160 mm||165 mm|
|Motor power options:||2x5/7,5 kW||11/15/22/30 kW||30/37/55/75 kW||55/75/90/110/132 kW |
|Diameter of circular saws:||400 mm||250–350 mm||300–500 mm||300–500 mm |
|Approx. weight:||1500 kg||1700 kg||3500–3900 kg||8300–9000 kg |
|Number of mobile heads (blades):||1||1/2/3||1/2/3||1/2/3/4/5|
|Fixed multi-ripping head:||no||yes||yes||yes|
|Number of feeding rollers:||feeding chain, 2 top||3 bottom, 2 top||3 bottom, 2 top||Bottom 2 + feeding chain, 3 top |
|Control – blade positioning:||left-right buttons||left-right buttons / automatic||automatic / auto. +|
|automatic / auto. + |
|Blade positioning system:||electric||hydraulic||hydraulic / fast servo hydraulic||hydraulic / fast servo hydraulic|
|Infeed:||simple roller table||simple roller table||simple / motorised||simple / motorised / fully automatic & optimised|
Mebor System® is our own system of horizontal band saws, which sets us apart from our competitors. With a Mebor band saw you will increase your productivity and yield, as well as decrease labour costs.
Wood is unpredictable and for this reason Mebor band saws have a strong and robust construction. It guarantees reliability of functioning and minimises maintenance costs.
Band saws adapted for your needs – for small and big sawmills. Every Mebor band saw is custom made; therefore we supply each customer an optimal band saw for his needs. We will advise which model is most suitable for your needs and requirements. We will also adjust the configuration of the band saw; for example the distances between clamps according to the lengths of logs, equipment etc.
Automatic board removing (Mebor System® )
We were the first to introduce the board removing system, which saves your time. After the band saw cuts a board, the board pusher pushes it off the band saw bed during the return of the band saw head. Simple and automatic, with no manual work.
Automatic functioning – Mebor System® Labour costs present a big share of costs in sawmills. Regardless of whether it is a small model, or a bigger and faster Mebor band saw model, all of them include automatic guidance. If necessary, this allows the operator to also stack boards on his own, simultaneously during sawing! As it is a one man operation, the labour costs are minimised. The operator should focus on the productivity, quality of wood and output, not on the machine operation. This is done instead of you by the Mebor band saw and you can increase the profit of your company. The control is simple and user friendly. Our customers learn how to operate the machine in a few hours.
Mebor System® leads the operator during cutting. It provides important information, which helps him choose the optimal cutting for best output. Manual control is also available for less demanding users.
Full log manoeuvring equipment is available for fast and effortless work.
Quick and low cost installation Mebor band saws are installed in one day and do not require any special foundations. Precision of cutting is ensured by the solid construction and wide blades. All Mebor band saws are using wide blades (80-210 mm wide). The fact is that wide blades provide higher sawing speed, as well as better sawing precision. The high quality of your products will increase the satisfaction of your customers.
